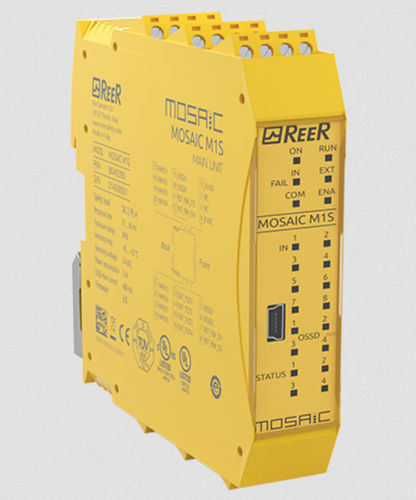

Machine safety system Mosaic M1S

configurable

Master Unit for the control of any other expansion unit, can also work as Stand-Alone As Master Unit: to control a more complex system providing protection for bigger machineries with multiple sensors As Stand-Alone: to control smaller machinery connecting with up to 4 safety devices, i.e. 1 safety light curtain, 1 e-stop, 1 safety sensor (e.i. magnetic) and 1 two-hand switch Features Safety level - PL e Safety inputs - 8 digital inputs Safety level (SIL / PL) - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 10 ... 55 Signalling - LEDs indication for operating status and fault diagnosis. LED indication of the: inputs, OSSD outputs, reset request and status outputs condition Safety output type - 4 single OSSD, or 2 pairs (PNP - 400mA at 24 VDC) with protection against short circuit, overload and reverse polarity Connections - Removable terminal blocks, screw contacts MTTFD (ISO13849) years - 30 ... 100 PFHD (IEC 61508) - 1,34E-08 Safety outputs - 4 single OSSD, or 2 pairs (400 mA) Status outputs - 4 PNP (100 mA) Test outputs - 4 Storage temperature (°C) - -20 ... +85 MSC connector provided - No Connection with MSC BUS - Yes Start/Restart inputs and EDM - 4 Housing for MCM - Yes USB input - Yes Packaging dimensions HxLxW (mm) - 36 x 127 x 113 Product class - C Custom tariff - 85371091
