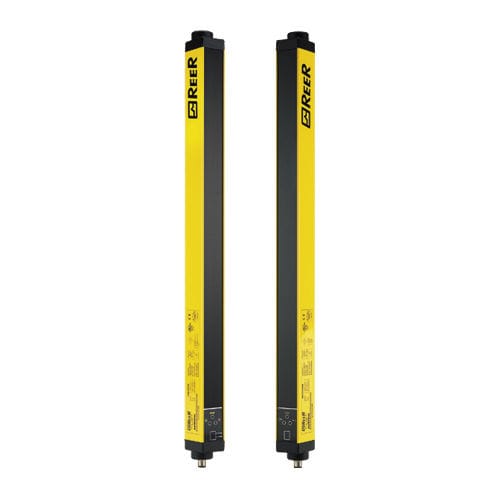

Type 4 safety light curtain ADMIRAL series

multibeamthrough-beamfail-safe

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4 Cross Section: 35 x 45 mm Hardware configuration: no programming necessary, easy to install and replace Connection and configuration through M12 connectors Unshielded cables up to 100 m can be used to connect the Safety Light Curtain What's in the Box: Emitter, Receiver and Standard Fastening Brackets Features Safety level - Type 4 - PL e Protected height (mm) - 160 Resolution (mm) - 14 Max. range (m) - Restart - Automatic Functioning system - Emitter / Receiver Safety level (SIL / PL) - Type 4 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - 0 ... 55 Response time (ms) - 6 Number of beams - 15 Max. length of the connection cables (m) - Signalling - 7 segment display and LEDs for light curtain's status and diagnostics Safety output type - 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity Connections - M12 5-pole connectors MTTFD (ISO13849) years - 100 PFHD (IEC 61508) - 1,02E-08 Safety outputs - 2 OSSD PNP (500 mA at 24 VDC) Safety functions - With external module Detection - Finger Protective enclosures - None Packaging dimensions HxLxW (mm) - 145 x 300 x 200 Product class - C Custom tariff - 85365019
