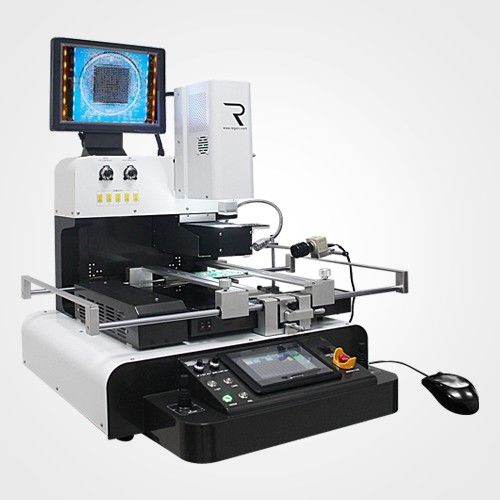

Hot air rework station BK-i510

automaticfor PCB

BK-I510 Premium Model adopted automated system for desoldering, soldering and vacuum pick up of target chips on PCB with vision for user to adjust position of chip on PCB through magnifying screen. High capacity optical compensation camera and monitor for color contrast help user adjust positioning parts at accurate location. Compared to cheap ceramic heater, high capacity preheater effectively prevent defective rate and excels in responsiveness against time-temperature by upper and lower hot air heater. With high intensity Infrared tube heaters minimize defective rate from chips on PCB. ↑ BK-i510 Main controller - High capacity 7 inch Touchpanel adopted - Cortex-A8 600Mhz CPU adopted - 65535 Color 800X480 ↑ BK-i510 Upper and Lower Heater - Automatic movement of upper heater by stepping motor - High capacity heater of 1200W adopted by automatic on/off for great responsiveness against input data - From 1st Step to 10th Step changeable temperature parameter ( heating time, keeping time, target temperature etc) ↑ BK-i510 Optical Vision by contrasting 2 different colors for accurate position match - To view both mouting points and target chip enables accurate position check by camera and monitor - Exact position of target chip for removal can be checked for accurate desoldering ↑ BK-i510 Infrared Pre-Heater - High-capacity Infrared Tubes built-in - Efficient Pre-Heating by 4000 Watt heaters (4pcs of 1000W heaters) ↑ BK-i510 Screen of Temperature setting - Basic temperature profiles saved for user to change and use - Convenient change of parameters of target temperature, increase level, maintenance time - Backup and storage of temperature profile
