ESD desk mat : Silicon Clean Mat RG-410
To make ESD preventive environment in repair of electronic devices

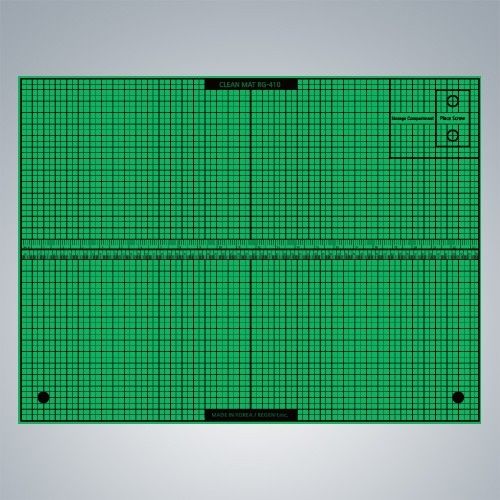

RG-410 is Flat, having 600x450mm size ,made of special silicon with ESD anti-static printing lines,
storage compartment becomes option and detached. Connection among one another
SILICON CLEAN MAT RG-410
- To prevent damage of electronic parts from ElectroStatic Discharge under dry environment
- Special silicon can withstand at least 250 celsius degrees and withstands some chemicals,
smoothness to lessen fatigue, cleaning is easy with water tissue
- Surface resistance: 10 to the power of 6 (Level of ESD Dissipative),
- Inhouse voltage test is 0.01~0.02 V, which is within Less than 0.2KV of acceptable range
required by phone maker but on the printed ESD free lines
(If ESD free lines wears out, please use new mat)
Electrostatic preventive ink printing
RG410 used special ink of Anti-ESD as above in black , at this printed lines ESD preventive effect is achieved
① Ground Cable : To send ESD current away to end of cable, fix crocodile clip onto metal part of multiple socket (Power strip)
② ESD ink lines : Printing lines in black on the front is electrostatic preventive.
③ Component storage : You can place disassembled tiny componets at the top right also you can buy option storage
compartment and place it on here or so. (Storage compartment option has no printing lines)
④ Magnetive portion : At the back side of these 2 rounds, there are 2 neodium magnets to pull disassembled tiny
components. Storage compartment option can be placed here.
