Disassembly tool RG-270

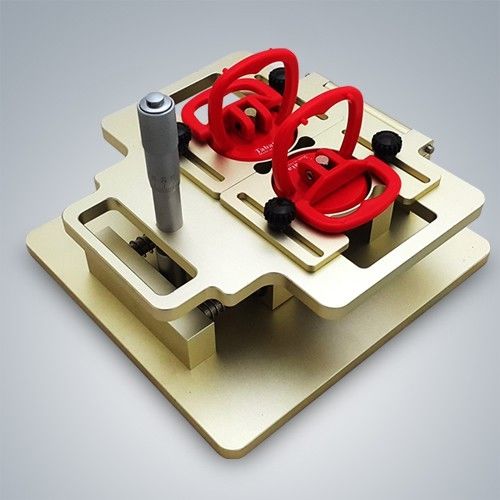

Disassembly jig RG-270 After using RG202 dryer oven, user can use RG270 jig to disassemble cell phone to repair. Product composed of precision par ( turn upper portion: inner bar to come out, turn lower portion: to connect or separte from main body) 2 TABATA suction cups (Spare parts; user can use only 1 suction cup or 2 based on the size of cell phone) Precision bar When you precisely try to disassemble both glass and LCD, you have to look at the side to hold the jig to see the side of cell phone and you have to turn upper portion of precision bar, if you hear strange sound from glass or feel that stickiness is too strong, you use methyl alcohol to pour around that portion of cell phone to reduce stickiness with alcohol bottle which is needle type When you fix the cell phone at the lower plate, cell phone is not tightly stuck by spring, but unstably wobble. This is normal symptom and toward each suction cup please use one hand to tug the bottom of cell phone and push it upward and with the other hand to lift the grip of suction cup, about the other suction cup, please in the same way support the bottom of cell phone with one hand to lift upward and with the other hand to hold grip of the other suction cup and lift grip to erect. You can check whether 2 suction cups (or 1 suction cup) well suck up the surface of cell phone. Caution: Suction cup should be the center of cell phone for center of load to lift both glass and LCD with even force with equilibrium. If you position suction cup at the side of cell phone, equilibrium of lifting force is lost, and you may break the glass.
