Stacker coil lifting boom

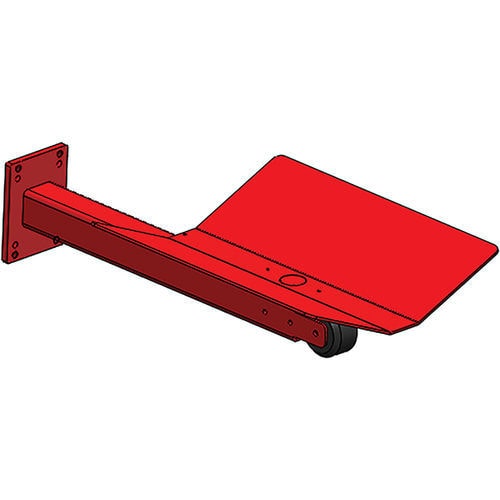

Our booms allow you to handle coils easily. The length and diameter of the spur can be customized to suit your needs. We also offer customizable double booms to handle more complex changes and loads other than coils. Our spurs are available in two versions, one steel and one in stainless steel. Lifting capacity : 60 - 120 kg Finishing : Steel & Staineless steel Number of versions : 20 Features Eperon roulette avec V supportBoom with wheel + V-Support 360° The boom with wheel, with its V-support, can handle loads of up to 80 kg and weighs 5.3 kg. The tool is available in two versions, steel and stainless steel. The boom is 500 mm long. The dimensions of the V-support support are 280 to 350 mm. This tool is compatible with: R.55 – R.65 – R.85 – R.125 – R.205 Boom with wheel for V-Support The boom with wheel for V-Support, can handle loads of up to 80 kg and weighs 2.5 kg for its standard version. The tool comes in two versions, steel and stainless steel, and can be customised in length. The boom is 60 mm wide. The standard version is 500 mm long, and can be customised to be between 300 and 800 mm long. This tool is compatible with: R.55 – R.65 – R.85 – R.125 – R.205
