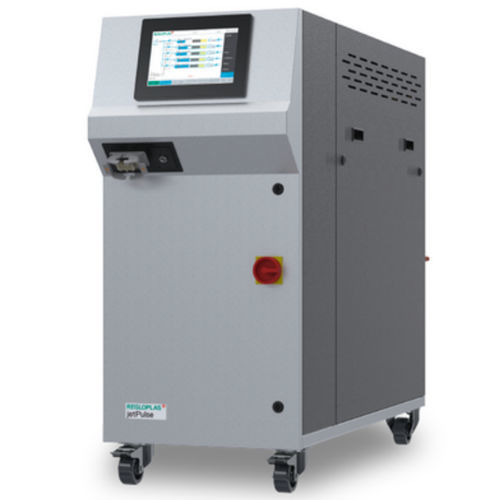

Temperature control unit with touchscreen jetPulse 100L

circulating watermulti-channelIP54

With the jetPulse, REGLOPLAS offers a versatile, individually applicable and cycle-accurate solution in pressure die-casting temperature control, which can efficiently cool mould areas where conventional temperature control is inadequate. -Water distribution system for die-casting with 6 channels and 8 cores per channel -Flow of up to 100 l/min with a max. pressure of 30 bar -Siemens PLC-controlled control system with a touch screen -Integrated temperature measurement -Adjustable air/water cooling time, Leakage monitoring time -Adjustable blowing out time, waiting times between actions -Energy-saving pump, only active when cooling is on Standard equipment -HAN 7D digital inputs (ext. Start) -Pressure gauge on unit and display -Siemens S7-1500 PLC with 10" MTP1000 touch display -Blow out -Leakage Control -Automatic water refill -Indirect cooling (1K) -Constant pressure control -Pump with frequency converter -Optical level indicator Options -2K cooling for more cooling capacity -ProfiNet M12 interface (ext. start) -System water desalination on the unit
