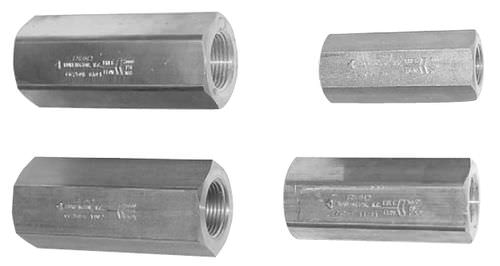

Ball check valve CGthreadedin-line
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Body
- threaded
- Other characteristics
- in-line
- Temperature
Max.: 165 °F
(74 °C)Min.: -320 °F
(-196 °C)
Description
Application
Inline check valves with metal seat option for cryogenic
service or with soft seat option for leak free operation in gas
service.
Features
• One directional flow indicated by arrow on body.
• Large Cv for high flow capability and low pressure drop.
• Working temperature range:
-320° F to +165° F for metal seats.
-20° F to +165° F for soft seats.
• 1 psig cracking pressure.
• Cleaned for use in oxygen service per CGA G-4.1
Catalogs
CG400 - CRYO-FLOW Products
43 Pages
