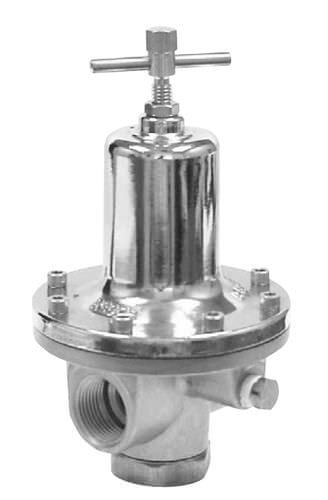

Gas pressure regulator 1780

membranesingle-stageindustrial

Application The 1780 Series Regulators are designed for final line pressure regulation on gas distribution systems. They are suitable for a variety of gases in medical or industrial applications. The 1780 Series Regulators have a balanced seat, are constructed with oxygen compatible materials, and have the same valve design, brass body, and internal parts as the premium BR-1780 Series. Flow performance is likewise equal to the BR-1780 Series. Features • Maintains a steady downstream pressure across a range of inlet pressure commonly provided by a cryogenic bulk tank. • Large seat and diaphragm areas provide high capacity with sensitive control of delivery pressure with low falloff. • Two 1/4" FNPT delivery pressure gauge ports are located (plugged) on each side of the valve. • Two bonnet drain/vent holes to allow for different mounting orientation. • T-handle adjusting screw. • Maximum inlet pressure is 400 psig. • Available in three delivery pressure ranges. • Temperature range: -40 F to 165 F. • Cleaned per CGA G-4.1 for oxygen service.
