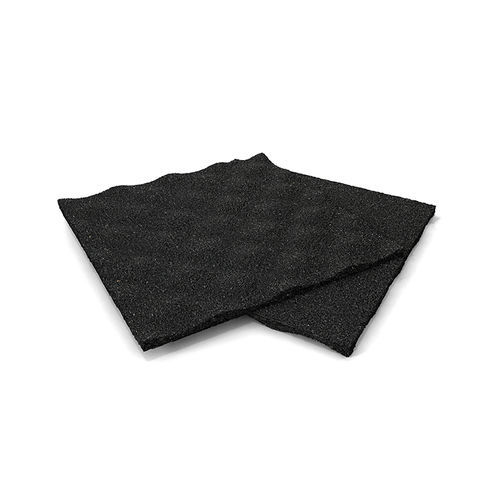

Impact sound insulating material REGUPOL sound 47

rubberPURflexible

REGUPOL SOUND FOR HEAVY DUTY SCREEDS The REGUPOL and REGUFOAM sound range has been tested to EN ISO standards and is labelled with the CE marking. It offers high performance solutions for impact sound insulation under screeds with traffic loads up to 50 kN/m². The REGUPOL and REGUFOAM sound range has been developed to effectively reduce the low-frequency structure-borne sound and rolling noise generated by shopping trolleys and forklifts. An extensive portfolio of approved and externally monitored products ensures planning certainty for apartment blocks and commercial buildings when it comes to sound insulation. REGUPOL SOUND 47 IMPACT SOUND INSULATION REGUPOL sound 47 is an 8 mm thin impact sound insulation layer with a profiled underside and a low dynamic stiffness of ≤ 30 MN/m³ which is used under heavy-duty screeds. It is especially suited to floor constructions with a low construction height. Impact sound reduction value of ∆Lw ≥ 22 dB. General MATERIAL PUR-bonded rubber fibres WEIGHT PER ROLL max. 57.0 kg DIMENSIONS Length 13,000 mm, width 1,150 mm, thickness 8 mm WEIGHT PER M² max. 3.8 kg Properties CE marking Impact sound reduction ∆Lw ≥ 22 dB Load bearing capacity up to 30 kN/ m² Compressibility ≤ 1 mm Services Individual consultation and customized solutions Access to network of specialist planners On-site support
