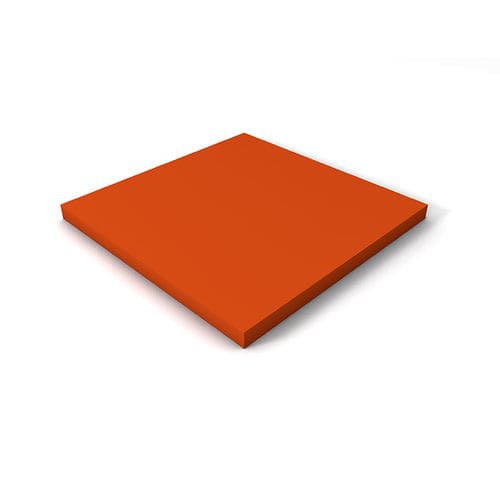

Sound decoupling material REGUFOAM vibration 990plus

anti-vibrationpolyurethane foambuilding

REGUFOAM VIBRATION FOR VIBRATION ISOLATION AND STRUCTURE-BORNE SOUND DECOUPLING The building authority approved REGUFOAM vibration range offers a portfolio of twelve product types which can be used in the wide load range between 0.002 N/mm² and 2.5 N/mm². This creates many possibilities to implement an isolation concept for projects in the field of building services and HVAC equipment, machines, pools and gyms, as well as vibration protection for buildings, especially those in close proximity to rail infrastructure. Our team is by your side to assist you in product selection, planning, conception of installation plans and will provide support during installation and implementation. REGUFOAM VIBRATION 990PLUS VIBRATION ISOLATION REGUFOAM vibration 990plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 2.50 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 8 Hz, depending on load and material thickness. General MATERIAL Mixed cellular polyurethane foam WEIGHT PER SHEET max. 19.5 kg – thickness 12.5 mm max. 39.0 kg – thickness 25.0 mm DIMENSIONS Length: 1,500 mm, width: 1,000 mm, thickness: 12.5 mm and 25.0 mm WEIGHT PER M² max. 13.0 kg – thickness 12.5 mm max. 26.0 kg – thickness 25.0 mm Properties Approved by building authorities Load range up to 2.50 N/mm² Natural frequency of down to 8 Hz Minimal material deflection Services Individual consultation and customized solutions Access to network of specialist planners Product recommendations Installation plans and support
