Impact sound insulating material REGUPOL sound 15

elastomercomposite materialPUR

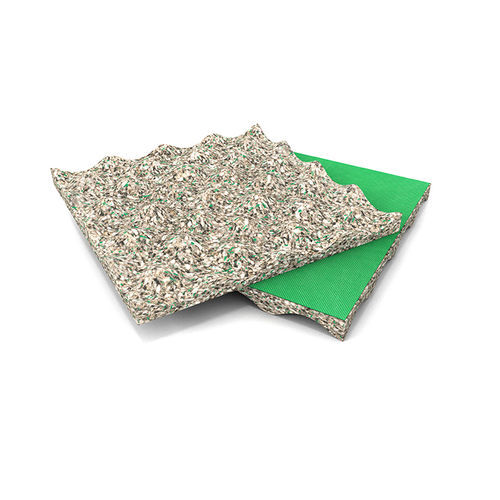

REGUPOL SOUND FOR HEAVY DUTY SCREEDS The REGUPOL and REGUFOAM sound range has been tested to EN ISO standards and is labelled with the CE marking. It offers high performance solutions for impact sound insulation under screeds with traffic loads up to 50 kN/m². The REGUPOL and REGUFOAM sound range has been developed to effectively reduce the low-frequency structure-borne sound and rolling noise generated by shopping trolleys and forklifts. An extensive portfolio of approved and externally monitored products ensures planning certainty for apartment blocks and commercial buildings when it comes to sound insulation. REGUPOL SOUND 15 IMPACT SOUND INSULATION REGUPOL sound 15 is an effective, 12 mm thick impact sound insulation layer with a profiled underside and a low dynamic stiffness of ≤ 6 MN/m³ which is used under heavy-duty screeds. Impact sound reduction value of ∆Lw ≥ 29 dB. General MATERIAL PUR elastomer composite WEIGHT PER SHEET max. 4.5 kg DIMENSIONS Length 1,200 mm, width 1,000 mm, thickness 12 mm WEIGHT PER M² max. 3.7 kg Properties CE marking Impact sound reduction ∆Lw ≥ 29 dB Load bearing capacity up to 30 kN/ m² Compressibility ≤ 2 mm Services Individual consultation and customized solutions Access to network of specialist planners On-site support
