Impact sound insulating material REGUPOL sound and drain 22

elastomercomposite materialpolyurethane

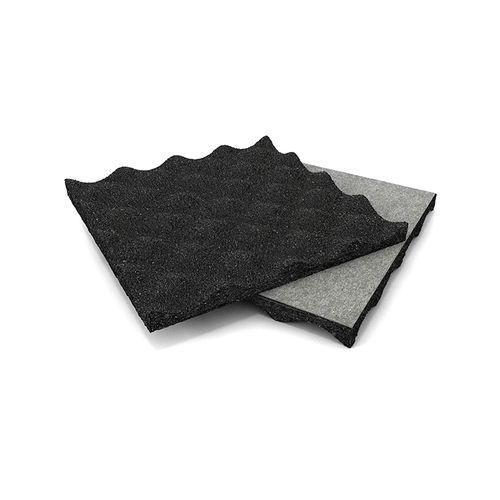

REGUPOL SOUND AND DRAIN FOR OUTDOOR APPLICATIONS The impact sound insulation material REGUPOL sound and drain has the CE marking and has been tested to DIN EN ISO standards. It provides acoustic insulation, membrane protection and drainage for a wide range of balcony and terrace constructions in one product. REGUPOL SOUND AND DRAIN 22 IMPACT SOUND INSULATION REGUPOL sound and drain 22 is a versatile, 15 mm thick impact sound insulation layer with a profiled underside and a low dynamic stiffness of ≤ 21 MN/m3 which is used in a wide range of constructions on roofs and terraces. Depending on the specific build-up, the impact sound reduction value achieves between ∆Lw ≥ 28 dB and ∆Lw ≥ 37 dB. General MATERIAL Polyurethane elastomer composite WEIGHT PER ROLL max. 81.0 kg DIMENSIONS Length 10,000 mm, width 1,250 mm, thickness 15 mm WEIGHT PER M² max. 6.5 kg Properties CE marking Impact sound reduction ∆Lw ≥ 28 dB to ∆Lw ≥ 37 dB Load bearing capacity up to 50 kN/ m² Compressibility ≤ 2 mm Protective membrane DIN 18531-2 Services Individual consultation and customized solutions Access to network of specialist planners On-site support
