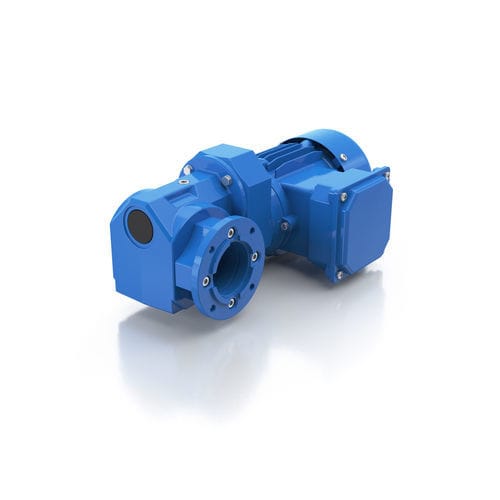

Worm gearbox SM

helical200 - 500 Nmflange

Our worm gears and helical worm gears / motors are high-performance gears with a very high degree of efficiency. All worm shafts are made from case hardened alloy steel and the flanks are precision ground. The worm wheels are made from special centrifugally cast bronze. Helical worm gears are equipped with a helical gear. Worm gears with shrink disc, torque limiter, as well as adjustable backlash designs are also part of our standard product range. Worm gearboxes and helical worm gearboxes type SM and SSM are high-performance gearboxes in universal design. The housings are made from high quality cast aluminium providing an advantage on weight. Nevertheless they are very robust designed. Further type provides lifetime lubrication. Characteristics Optimised size/performance ratio Designed for permanent operation under rough conditions Extreme torsional resistance and low nois Case hardened worm shafts and worms with precision ground flank Helical worm gearboxes equipped with helical gear wheel Worm wheels produced from centrifugally cast bronze High efficiency through the use of synthetic oil (lifetime lubrication) Space saving angular drive Options Basic mounting, flange mounting or universal design Output shaft available as solid shaft or hollow shaft Torque arm IEC-standard motor mounting NEMA-version ATEX specification Shrink disc at hollow shaft Lubricants suitable for the food industry Areas of application Packaging machines Conveyor technology Agitators Storage technology Pharmaceutical technology Systems for the automotive industry
