Tire coupling MULTI CROSS RILLO | MCRtransmissionfor machinestaper sleeve
Add to favorites
Compare this product
Characteristics
- Type
- tire
- Product applications
- transmission, for machines
- Construction
- taper sleeve
- Performance
- zero-backlash, maintenance-free, highly-elastic
- Installation system
- sleeve
- Torque
Min.: 24 Nm
(17.7015 ft.lb)Max.: 14,500 Nm
(10,694.6512 ft.lb)- Rotational speed
Min.: 1,000 rpm
(6,283.19 rad.min-1)Max.: 5,500 rpm
(34,557.52 rad.min-1)
Description

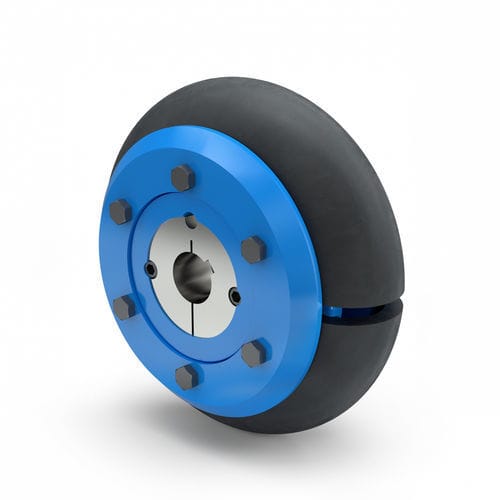

Highly-elastic coupling - MULTI CROSS RILLO | MCR
Highly flexible tyre coupling MULTI CROSS RILLO MCR
* High torsional flexibility with progressive torsional deflection characteristic
* High compensating capability for axial, radial and angular misalignments
* Easy and time saving mounting of the coupling hubs thanks to the use of taper bushes
* Radial change of the rubber element without axial movement of the coupled machines
* Backlash-free torque transmission even in case of alternating directions of rotation
* High torsional vibration and shock load damping capability
* Noise level insulation
* Wear-resistant and maintenance-free
