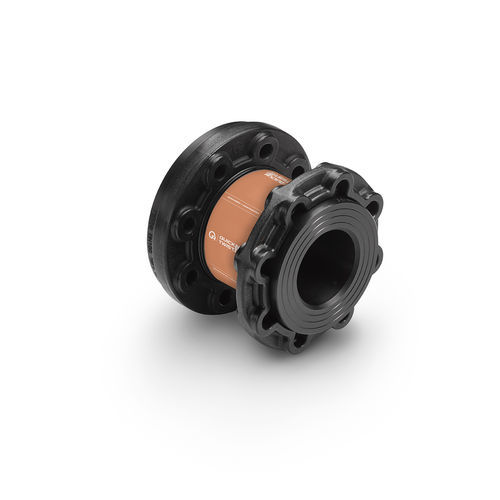

Dismantling joint QUICK-TWIST

The light and absolutely corrosion-resistant dismantling joint QUICK-TWIST is tailored exactly to your needs. The well-designed Reinert-Ritz HP flange is used for maximum reliability on the loose side. On the fixed side, QUICK-TWIST is equipped with our well proven special flange VP, which offers outstanding connection and sealing properties. QUICK-TWIST is operated in the twinkling of an eye. A rotating mechanism allows to adjust to the desired length. Then the flange is screwed as usual. The time savings compared to a standard dismantling joint is more than 50 % of the usual time. The fittings to be offered must be manufactured from material in compliance with the PE100+ Association and according to DIN EN 12201 with respect to dimensions, tolerances and quality requirements. The fittings must be designed both in the flange-flange version and in the optionally available flange-spigot end version with a coarse thread for +/- 15 mm adjustability of the dismantling joint. The bodies of the PE fittings must be manufactured from a piece of homogeneous semi-finished material in each case. Semi-finished materials manufactured from wound rods are not permitted. The flanges must be drilled following the hole pattern stipulated by DIN EN 1092-1 PN 10 or PN 16. The stub and flange must interlock in a positive fit at their connecting surfaces and the flange must provide additional support to the stub from outside so as to counteract deformation.
