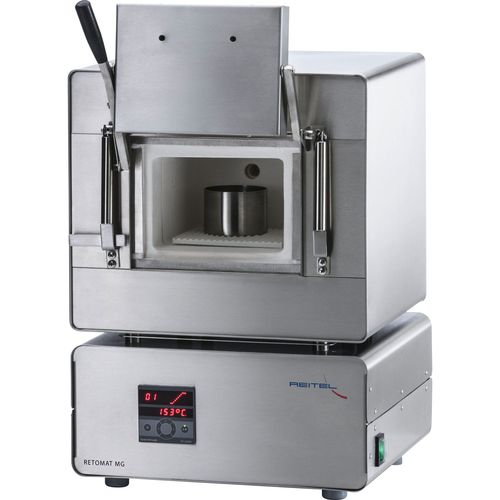

Chamber furnace RETOMAT MG

spiralpreheatingcasting

RETOMAT MG Description The laboratory furnaces of the RETOMAT series are specially designed for the precious metal and model casting technique. The RETOMAT MG has a chamber size of 9.2 l. With the controller, you make the decision between a COMFORT controller and an EASY controller, depending on your usage requirement. With the reasonably priced EASY controller, you keep the desired temperature value constant until the device is switched off. The COMFORT controller enables precise temperature control with heating and holding steps. There are 30 programs with 4 ramps and a speed program available. An even temperature distribution is ensured in the RETOMAT series by the four-side heating spiral system and optimum chamber insulation. The oven door can be pivoted away upwards for the storage of combustible material, a heat-resistant extract is optional. Features four-sided heating element and a heating rate of max. 15 °C / min. maximum temperature of 1.150 °C ventilation fan adapter optimal insulation materials upward opening stainless steel furnace door optionale catalyst for reduction of odours and smoke through cathalytic afterburning of furnace gases stainless steel housing Technical Data Line voltage: 230 V/50-60 Hz Current consumption: 3.000 W Height/Width/Depth: 570+140/450/520+200 mm Heating room H/W/D: 145+10/235/260 mm Volume: 9,2 l Weight: 48 kg Housing: Stainless steel Order-No.: 17406000
