Jaw coupling shaftcompacttorque
Add to favorites
Compare this product
Characteristics
- Type
- jaw
- Product applications
- shaft
- Construction
- compact
- Other characteristics
- torque
- Torque
Max.: 2,500 Nm
(1,843.9054 ft.lb)Min.: 800 Nm
(590.0497 ft.lb)
Description

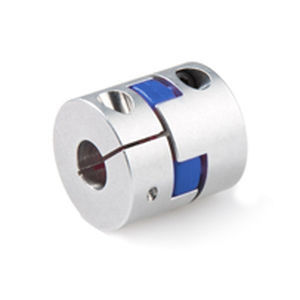

Our curved jaw shaft couplings are made up from two aluminum hubs and a central polyurethane central element with curved faces. The Curved jaw couplings are an ideal compact solution for high revolutions per minute (RPM) applications that require a zero backlash and also reducing the system torque ripple. A choice of three alternative damping elements for high, medium and low torques are available.
Technical features include:
Zero backlash
Alternative damping element hardness
Recommended temperature range -30ºC to +80ºC
Torque ripple reduction
Maintenance free
Bore sizes 6 mm to 12 mm
Set screw and clamp hub type fixing methods
