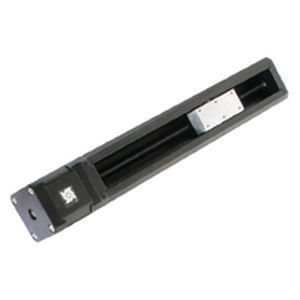

Linear Rail Actuator The linear rail actuator consists of a stationary base and load bearing carriage that travels along a rigid extruded aluminium rail, together with a single stack size 17 stepper motor. The carriage design is unique; it controls slide bearing play with a self-adjusting linear bearing. Integrated along the entire length rail system are “T” slots allowing mounting of limit switches and sensors. The leadscrew is made from 303 stainless steel with a Black Ice™ TFE coating for durable and permanent lubrication. The features of the linear rail actuator include: • “T” slots integrated into exterior rail bottom and sides that accommodate full length support and various mounting options • Loads easily attach to the compact, moving carriage with four or six M4 x 0.7 size screws • Load bearing carriage moves efficiently and smoothly within the internal rail geometry of this specially designed aluminum extrusion • Rail provides end-to-end axial stability and precise motion system accuracy • Automatic adjustments of slide bearing play with a patent pending “anti-backlash” linear bearing • Rated life equals that of the existing leadscrews of similar size • Leadscrew end configurations adapt to various rotary motion sources • Black Ice™ TFE coatings on a 303 stainless steel leadscrew
