Axial extensometer 0.4" - 4" | EAG

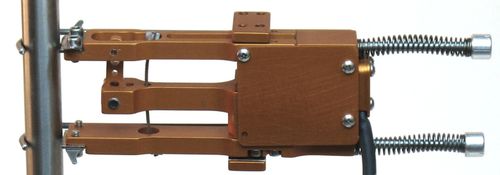

Model EAG also features our unique, ultra-low profile, axial Quick Attach System. This attachment system is designed to provide easy attachment while not unduly influencing the extensometer's output. The wire forms on our system are designed to transmit the attachment force axially through the extensometer. The system includes round and flat wire forms for both round and flat specimens. If you prefer to attach the extensometer with springs or rubber bands, spring mounts are provided with the unit. Model EAG-0200-0100-x - General Pourpose Axial Extensometer All model EAG extensometers feature a full, 350 ohm, strain gauge bridge design and are compatible with most any brand test equipment. We can install the proper connector to interface to most any electronics including Instron. If your test frame or set-up does not have the required strain signal conditioner, we can supply stand-alone electronics calibrated with your extensometer. This will allow you to use a chart recorder, digital display, or data acquisition card. All standard models meet ASTM B-1 and ISO 9513, class 0,5 accuracy requirements. Each extensometer comes with an inspection certificate traceable to NIST, a spare parts kit, a spare set of tool-steel knife edges, and a quality, foam lined, plastic case.
