Dredging hose
hydraulicfabricsynthetic rubber

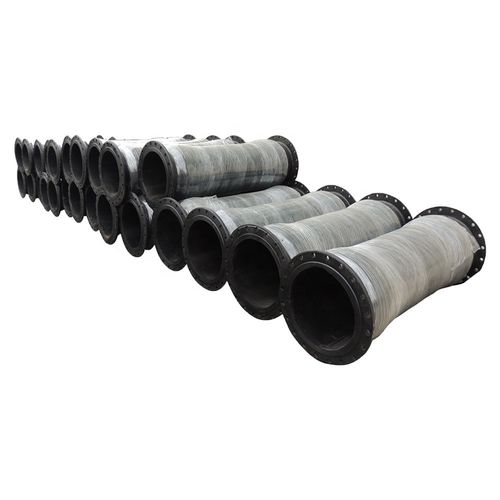

Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber
Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber
Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber - image - 2
Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber - image - 3
Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber - image - 4
Dredging hose - Relong Tech - hydraulic / fabric / synthetic rubber - image - 5
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
synthetic rubber, fabric
Applications
heavy-duty, dredging
Other characteristics
abrasion-resistant, wear-resistant
Inner diameter

Min.: 300 mm
(11.811 in)

Max.: 1,000 mm
(39.37 in)

Pressure

Min.: 3.6 MPa

Max.: 7.5 MPa

Delivered length

Min.: 1 m
(3'03" )

Max.: 5 m
(16'04" )

Description

RELONG’s Dredging Rubber Hose features “customized” heavy-duty, wear-resistant constructions employing the finest grades of natural and synthetic rubber and fabric. And engineers and manufactures the complete hose assembly from formulation of all rubber compounds to vulcanizing the finished hose. This is your assurance that all raw materials used in production are compatible with each other and most suitable for the intended use of the hose. Feature 1.Discharge hoses are used with dredgers for silt/gravels conveyance. 2. Pipe wall thickness range: from 15mm up to 100mm. 3. The suitable working temperature: from -20℃ to +50℃. 4. Abrasion-resistant and bending –resistant. 5. It is convenient to install, flexible to use and safe. Application Dredge Rubber Hose is used for transporting sediments along with dredging boats. Dredging Rubber Hose is mainly applied to river and harbor construction, land reclamation and dredging, to extend the distance of the water dredging. Quality Guarantee Produced in hard and soft-wall constructions, RELONG’s Dredging Hose is quality-based with over 30 years of experience in hose design and manufacturing and has the strong research and development ability. Builds cooperation with China best ship design institutes; and RELONG products will be fully tested before delivery. Besides, the production cycle is short, the delivery time is guaranteed. RELONG has built after-sales service team in the main sales areas, which could be ready to supply solutions .
