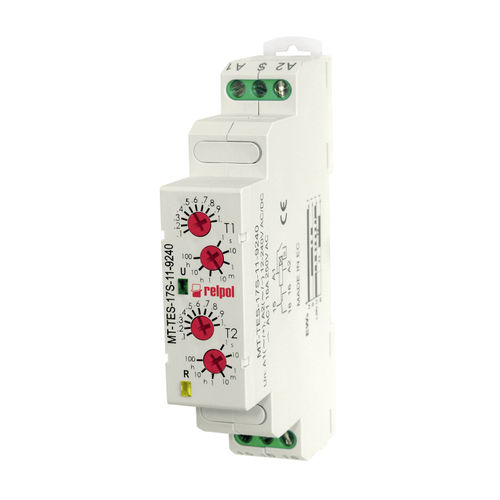

Time relay on delay MT-TES

DIN rail mounteddirect mounting

Time relay with independently controled times T1 and T2, time function EWs ( ON delay and ON for the set time), 7 time ranges. Contact data  Number and type of contacts 1 C/O Contact material : AgSnO2 Max. switching voltage  AC 400 V DC 300 V Max. breaking capacity AC1 16 A / 250 V AC Input control circuit  Rated voltage AC: 50/60 Hz AC/DC  12…240 V Insulation  Insulation rated voltage 250 V AC Rated surge voltage 2 500 V 1,2 / 50 µs  Dielectric strength: - input - output 2 500 V AC - contact clearance 1 000 V AC General data  Ambient temperature operating  -20...+45 oC Time module data  Functions EWs Time ranges 0,1s ...100 h Min. time of pulse duration AC ≥ 50 ms, DC ≥ 20 ms
