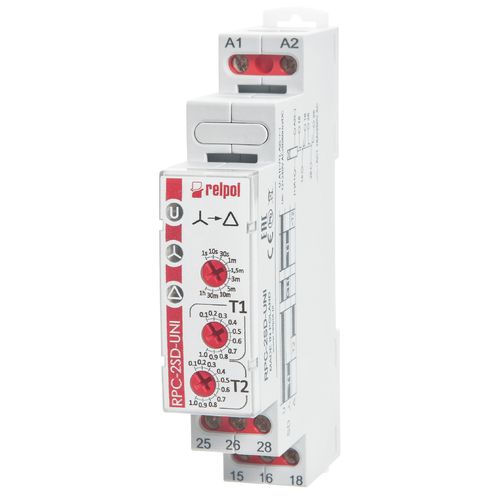

DIN rail mounted time relay RPC-2SD-UNI

direct mounting

Time function SD - Star-Delta start-up; 10 time ranges; Independent times T1 and T2. Max. breaking capacity AC1 - 2000 VA; Max. switching voltage AC- 300 V Technical info Number and type of contacts : 2 x 1 CO Time functions Star-Delta start-up Rated load AC1 8 A / 250 V AC DC1 8 A / 24 V DC; 0,3 A / 250 V DC Input rated voltage  AC: 50/60 Hz AC/DC Time ranges (start-up for the star) T1  1 s ; 10 s; 30 s; 1 min.; 1,5 min.; 3 min.; 5 min.; 10 min.; 30 min.; 1 h  Timing adjustment T1  smooth - (0,1...1) x time range
