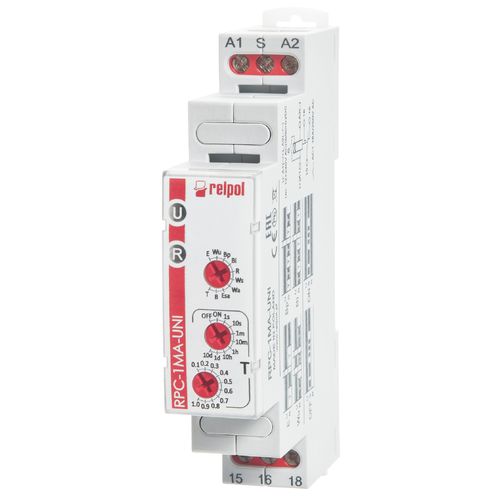

Time relay on delay RPC-MA series

off delaymulti-functionDIN rail mounted

Multifunction time relays: 10 diferents functions, 8 time ranges. Contact material AgSnO2. Max. breaking capacity AC1: 1CO - 4000 VA, 2CO - 2000 VA Technical info Number and type of contacts : 1 CO; 2 CO Input rated voltage 50/60 Hz AC AC: 50/60 Hz AC/DC Time ranges OFF - permanent switching off; ON - permanent switching on 1 s ❹; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d Timing adjustment smooth - (0,1...1) x time range (does not refer to range ON / OFF)   Time functions: • E    - ON delay • Wu - ON for the set interval • Bp  - Symmetrical cyclical operation pause first • Bi   - Symmetrical cyclical operation pulse first • R    - OFF delay with the control contact S • Ws - Single shot for the set interval triggered by closing of the control contact S • Wa - ON for the set interval triggered with the control contact S • Esa - ON and OFF delay with the control contact S • B    - Cyclical operation controlled with closing of the control contact S • T    - Generation of the 0,5 s pulse after the interval T.
