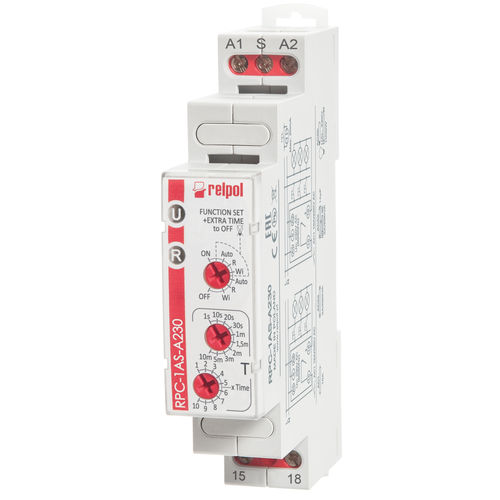

Staircase time relay RPC-1AS-A230

multi-functionDIN rail mounteddirect mounting

Multifunction time relays - Staircase switches - switching lighting circuits equipped with gas-discharge lamps or bulbs. Relays have 5 time functions, 10 time ranges. Technical info   Number and type of contacts 1Z Rated voltage 50/60 Hz AC/DC Time ranges  1 s; 10 s; 20 s; 30 s; 1 min; 1,5 min; 2 min; 3 min; 5 min; 10 min Functions ON, OFF, AUTO, R, Wi, Extra time Timing adjustment (1...10) x time range Functions: • ON - stable ON,  • OFF - stable OFF, • AUTO - ON for a set interval triggered by applying the supply voltage U or closing of the control contact S, • R - OFF on the control contact S, • Wi - on the set interval controlled by closing of the control contact S, with the function of switching off the output relay R prior to the lapse of the interval T.
