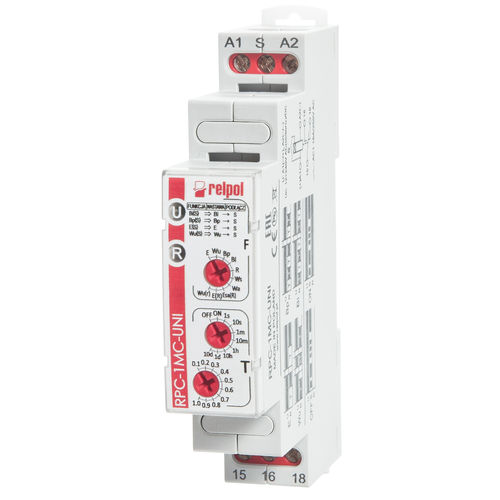

Time relay on delay RPC-1MC-UNI

off delaymulti-functionDIN rail mounted

Multifunction time relays: 14 diferents functions, 8 time ranges. Contact material AgSnO2 . Max. breaking capacity AC1 - 4000 VA. Max. switching voltage AC - 300 V Technical data Number and type of contacts : 1 CO Input rated voltage  AC: 50/60 Hz AC/DC Time functions: • E - ON delay • E(S) - ON delay, with time measurement stopped with contact S • Wu - ON for the set interval • Wu(S) - ON for the set interval, with time measurement stopped with closing of contact S • Bp - Symmetrical cyclical operation pause first • Bp(S) - Symmetrical cyclical operation pause first, with interval T measurement stopped for the time the S contact is switched on • Bi - Symmetrical cyclical operation pulse first. • Bi(S) - Symmetrical cyclical operation pulse first, with interval T measurement stopped for the time the S contact is switched on • R - OFF delay with the control contact S • Ws - Single shot for the set interval triggered by closing of the control contact S • Wa - ON for the set interval triggered with the control contact S • Esa(R) - ON and OFF delay controlled with on and off of the S contact with the Reset function • E(R) - ON delay with the Reset function • Wu(R) - ON for the set interval with the Reset function • ON / OFF - Permanent switching on / off
