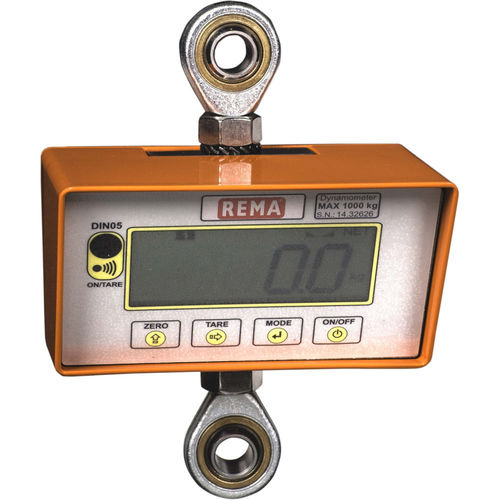

Digital dynamometer DSD05 series

for cranes

Mechanical properties •Aluminum housing. •Alloy steel pulling unit. •Test load 2 x WLL (without losing accuracy). •Safety factor 5 x WLL. •International Protection Rating / Ingress Protection: IP65 (EN60529). Electrical specifications •Alkaline battery (3 x AA type). •Battery operating time about 180 hours. Electronic specifications •Operating temperature range between -5° C to + 55° C. •Accuracy up to approx. 0.1% of the reading value. •Battery indicator. Option •U-13 Unilock bow schackle (2635013). •Marking: According to standard, CE-marked •Standard: EN 12100, EN 13155, EN 13889 •Note: Includes plastic case, manual and calibration report. •Safety factor: 5
