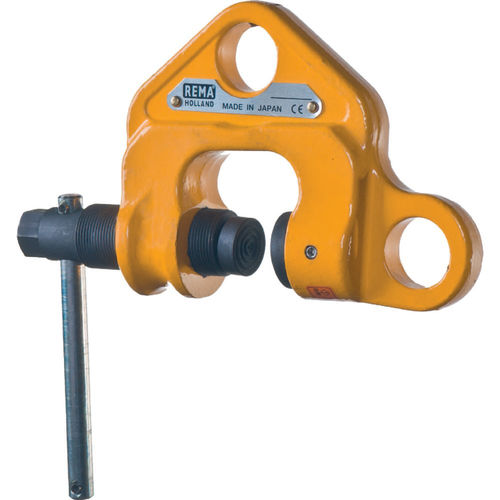

Beam lifting clamp WF series

verticalhorizontalscrew

WF screw clamps are the lightest clamps with the highest capacity by means of a double round pivot. Special high-quality Alloy steel housing provides a safety factor of 8. The clamp is equipped with a double locking mechanism with movable pivots that guarantees increased clamping capacity. Properties • - Double round pivot locking, resulting in stronger clamping force and safe operation. • - Because of the two attachment holes it is possible to carry out work in all directions. • - This clamp can be used to hoist inclined loads such as I-beams. • - Fine adjusting screw thread. • - Preservation powder coating. • - The pivots and the screw are specially treated to prevent rusting. Application • - Hoisting and transport work: Steel material, including H-beams, I-beams, steel plates, tubes, angle profiles and steel posts, as well as steel beams, pillars, welded objects and other workpieces. • - Lowering workpieces easly with any hoisting equipment. • - Dragging steel plates to arrange them on the ground. Marking: According to standard, CE-marked Standard: EN 12100, EN 13155
