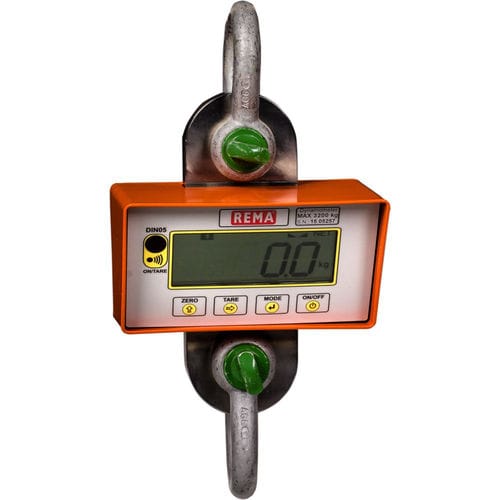

Digital dynamometer DSD05T seriesfor cranes
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Applications
- for cranes
- Rated load
3,200 kg, 6,300 kg, 10,000 kg
(7,054.79 lb, 13,889.12 lb, 22,046.23 lb)
Description
Mechanical properties
•Aluminum housing.
•Alloy steel pulling unit.
•Test load 2 x WLL (without losing accuracy).
•Safety factor 5 x WLL.
•International Protection Rating / Ingress Protection: IP65 (EN60529).
Electrical specifications
•Alkaline battery (3 x AA type).
•Battery operating time about 180 hours.
Electronic specifications
•Operating temperature range between -5 ° C to + 55 ° C.
•Accuracy up to approx. 0.1% of the reading value.
•Battery indicator.
Standard delivery
•Bow shackles (3,2T and 6,3T).
•Remote control to tare.
Option
•Bow shackle from 10T.
•Marking: According to standard, CE-marked
•Standard: EN 12100, EN 13155, EN 13889
•Note: Includes plastic case, manual and calibration report.
•Safety factor: 5
