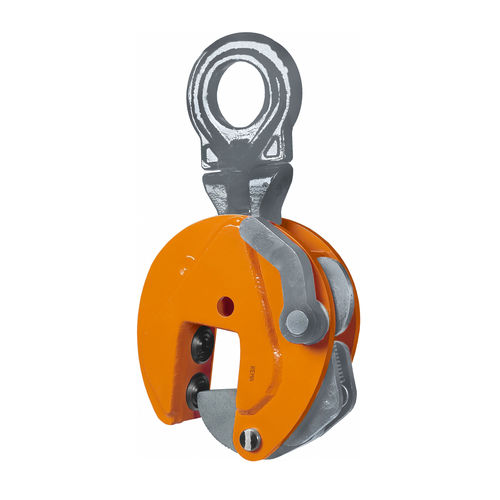

Profile lifting clamp CBU seriesvertical
Add to favorites
Compare this product
Characteristics
- Intended load
- profile
- Lifting type
- vertical
- Load limit
3,000 kg, 5,000 kg
(6,613.87 lb, 11,023.11 lb)
Description
Specifically developed for lifting and transportation HP profiles and ship constructions using HP profiles. Fitted with 2 cams and universal lifting eyes.
Application
•For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions
•Jaw openings available from: 0 to 45 mm
•Higher WLL available upon request.
•Lifting of longer sections should be performed with a spreader beam fitted with multiple clamps.
•Marking: According to standard, CE-marked
•Standard: EN 13155, EN 12100
•Warning: Min . WLL is 10% of max . WLL.
•Safety factor: 5
