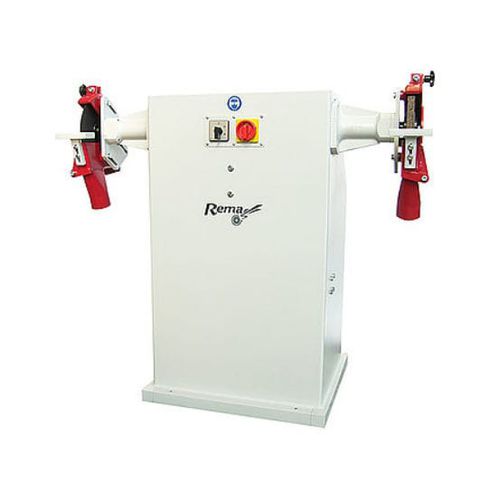

Metal profile grinding machine PME 60

double-disc

Compact rough grinding machine for cutting speed 60 or 80 m/s. Even bulky work pieces can be processed because of the external grinding wheels. The machine is on the left-hand side equipped with clamping flanges for grinding wheels 230x20x22 mm and on the right-hand side for cutting wheels 230x4x22 mm. The machine is also available for wheel diameter 300 mm at additional charge. Rough grinding machines with direct driven spindle shaft In sturdy construction for heavy continuous operation. The machines can either be supplied for cutting speed 30 m/s or 45 m/s. For lateral grinding of plane work pieces, we recommend our heavy lateral support table SAS connection with grinding ring mounted by screws. The maximum workpiece height that can be operated is 200 mm with 500 mm wheels and 260 mm with 600 mm Ø wheels.
