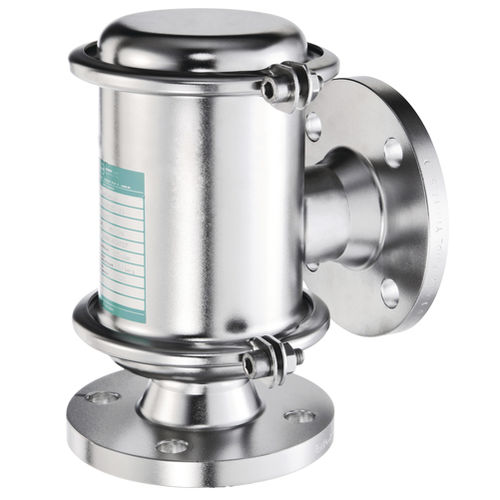

Tank breather valve ELEVENT®

low-pressurefor vacuumflange

Vessels and tanks with minimal design pressures are effectively protected against the lowest overpressure and vacuum with ELEVENT® breather valves. They reliably prevent the escape of gases, environmentally harmful substances or explosive mixtures as well as the ingress of air. A constant controlled tank pressure level is assured. The extraordinarily light and compact design is achieved with a deep-drawn stainless steel or metal housing. The clamp connections result in a modular design with interchangeable components. Maintenance can be carried out quickly and easily. The trend-setting valve concept with deep-drawn housing parts offers a flexible design of the connections, i.e. an exact adaptation of the valve to all system specifications. Connection variants with ANSI flanges, Tri-Clamp and pipe fittings according to DIN 11851 as well as CF and KF flanges are available on request. ELEVENT® is used in the oil and gas industries, food processing, the chemical and pharmaceutical sectors and power plant technology. The optimised "air cushion" sealing principle provides a smooth valve stroke and an extremely reliable leak-tight seal. This prevents abrasion and valve chatter. The metal housing is made from deep-drawn stainless steel. Advantages • Nominal diameters DN 25 to DN 200. • Lowest response pressures from 2 mbar to 200 mbar, depending on the nominal diameter. • Quick and easy inspection and maintenance through clamp connections. • Seals and weights can be replaced on site. • Modular design (interchangeable elements). • Light and compact design. • Extreme stability with low weight. • Optimised sealing technology. • HALAR and PFA coating*.
