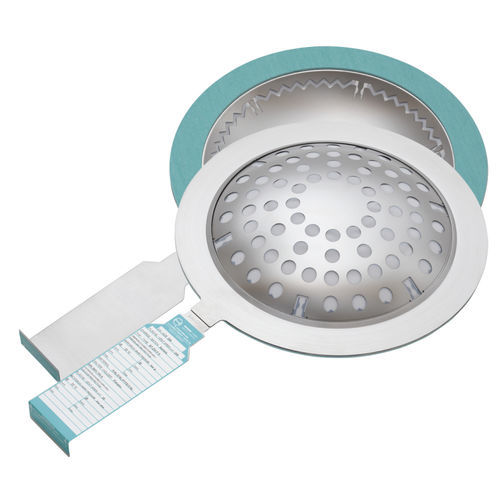

Forward acting rupture disc ZW

reverse actingmetalcustom

The bi-directional acting rupture disc opens in one direction for a defined overpressure and in the other direction for vacuum. It is primarily used in storage tanks and processes involving gases or liquids. The rupture disc permits a standard operating ratio of 80 %* in the overpressure direction and 70 %* in the vacuum direction. The ZW can be supplied with an integrated SNR signalling unit suitable for use in hazardous areas. When the disc ruptures in either the overpressure or vacuum direction, the SNR gives an open circuit signal to advise of an activation. By combining the principles of the KUB® reverse acting rupture disc with the buckling pin and the three-section design of the ODV forward acting rupture disc, we can offer you a rupture disc that responds at two different but precisely defined burst pressures. Advantages • Performs the work of two rupture discs at one installation point. • No additional holder required: mounted directly between flanges or angular rings. • Suitable for a wide range of applications.
