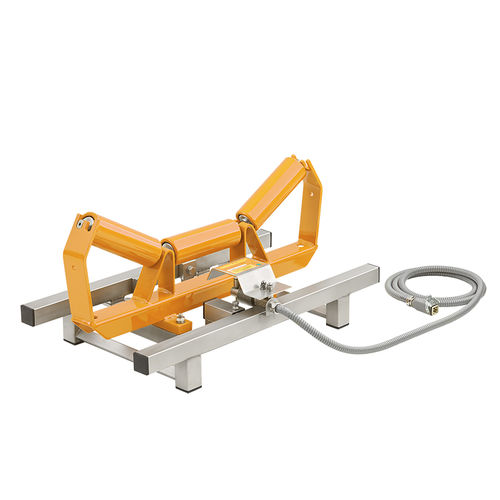

Scale with separate indicator UNIBAND®

stainless steelindustrialfood

Mass measurement on the belt conveyor. Exact detection of conveyed rates. The UNIBAND® is a stainless steel conveyor belt scale for the weighing of continuous material flows. With its simple integration into a conveyor system the throughput and usage measurements may be commercially effected for the desired bulk materials. Because of the low construction height of UNIBAND® it can be integrated into any conveyor system for mass measurement. The UNIBAND® optimises processes with accurate measurements in many different kinds of industrial sectors: stone, earth, food, chemicals and much more. Operation The weight of the material upon the conveyor belt acts on the measuring roll station, to which the weighing framework is connected. An overload-protected loadcell transforms the weight signal into a voltage signal. Using an optional speed measurement wheel, which continuously runs on the lower belt, the current belt speed is registered. A downstream transmitter processes the weight signal in relation to the belt speed. The conveyor’s performance is displayed in “t/h” and the selected meter reading, for example daily amount in “t” (tonnes).
