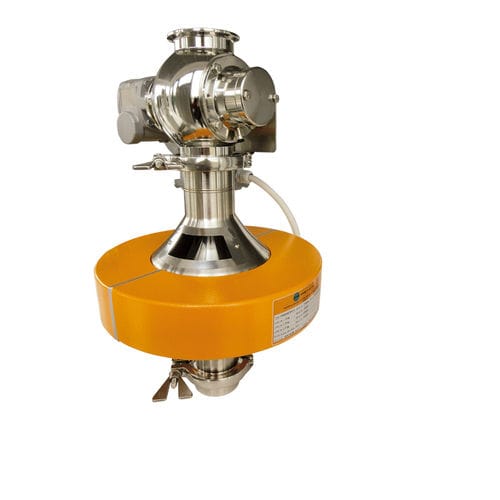

Mass flow meter VASOMETER®

for bulk materialsstainless steelfor the food industry

Hygienic flow metering Simple and clean measuring of powder and bulk materials. The innovative flow metering system for freely falling bulk material provides the ability to conduct an optimal control of process parameters in hygienically demanding areas. The dead-space-free stainless steel housing and the measuring cells located outside the measuring chamber enable an easy cleaning and sterilizing of the measuring device. This increases the efficiency of the plant without requiring an expansion of the measuring system. Operation Powder and bulk solids are conveyed shock-free onto a concave measuring cone through a feed mechanism within the measuring device which acts as the device‘s sensor. The cone deflects the bulk material and generates a force. The downward acting component of the developing centripetal force is detected by a series of measuring cells which are located outside of the measuring chamber and transmit to a digital transducer. This measurement principle is able to achieve a measurement uncertainty of up to ± 0.5 % – a measurement accuracy of 99,5 %.
