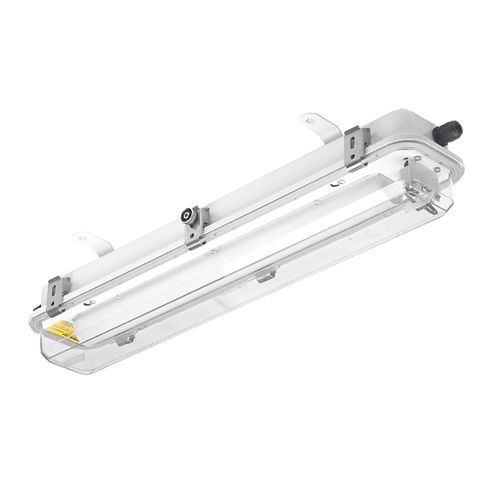

Light fixture EXP 83 MLED

LEDUVIP66

APPLICATION LED luminaire designed to light areas and facilities on ships and offshore with an explosion hazard of gases, vapours and flammable fogs mixed with air. Hazardous zones: 1,2,21,22. Luminaire equipped with diffuser (D) mounted on LED panel for light pattern shapping and reducing glare. TECHNICAL DATA Type of housing: gas: Ex db , eb, mb I dust: Ex tb Explosion gr gas: IIC, IIB, IIA I dust: IIIC, IIIB, IIIA Temperature class: T4, T3, T2, T1 Max surface temperature: 60C or 65C Protection level: gas: Gb I dust: Db Protection degree: IP 66/67 Ambient temperature: from -35C to +40C CERTIFICATE KDB 04ATEX339X MOUNTING Two brackets with 2 mounting holes each. CONSTRUCTION DETAILS Housing: zinc coated steel sheet, powder painted Diffuser: UV stabilized, strengthened polycarbonate Diffuser clips: stainless steel Mounting plate: zinc coated steel sheet, powder painted Colour temp.: 4000K* Power supply: 110-254V AC 50/60 Hz or 220-250V DC * other colour temp. on special request OPTIONS Stainless steel housing Cable glands for armoured cables 3 hour emergency unit with self-test 1,5 hour emergency unit with self-test LED panel without diffuser Steel wire guard
