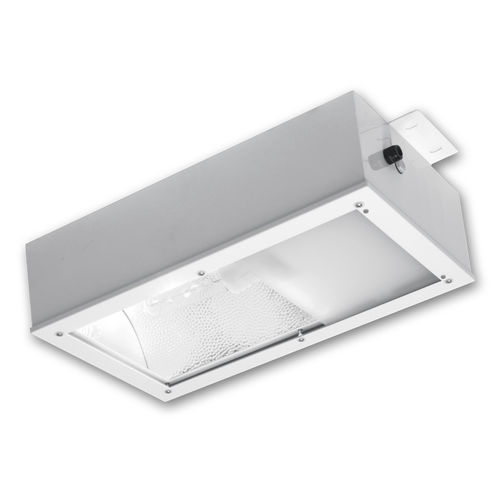

Light fixture PB 98

LEDlamphalogen

APPLICATION Dustproof and watertight surface industrial luminaire for discharge sodium and metal-halide lamps. Suitable for lighting gas stations, sport facilities, production halls or outdoor places. Luminaire has approvals for use in social type facilities such as hospitals and schools, also farmaceutical, gastonomy and food industry. TECHNICAL DATA Protection class: I Protection degree: IP 65 Power factor: ≥ 0,85 Ambient temperature: to +45°C CERTIFICATE HYGENIC CERTIFICATE HK/B/1683/01/2005 MOUNTING Direct ceiling installation with use of two brakets. CONSTRUCTION DETAILS Housing: zinc plated steel sheet, powder painted Diffuser: tempered glass pane Reflector: aluminium, symmetrical or asymmetrical shape Ballast: 230V, 50 Hz magnetic Luminaire with standard lamp base position adjustement for best lighting parameters OPTIONS Symmetrical reflector ADDITIONAL EQUIPMENT Luminaire with additional max.250W halogen light source (lamp base B15d). When voltage drop occurs special unit turns on halogen lamp so the main light source can cool down.
