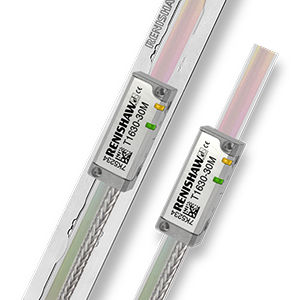

Incremental linear encoder TONiC™ UHV RTLC20

opticalnon-contactanalog

What is TONiC UHV? TONiC UHV brings Renishaw's super-compact, non-contact encoder system to Ultra-High Vacuum applications offering customers improved motion control. TONiC offers speeds up to 10 m/s and, combined with the Ti interface, resolutions down to 1 nm for both linear and rotary applications. TONiC systems are quick and simple to install with wide set-up tolerances and calibration at the push of a button. TONiC's dynamic signal processing gives improved signal stability with ultra-low Sub-Divisional Error of typically <±30 nm to help realise superior motion control performance. What is RTLC20 scale? RTLC20 is a low profile stainless steel tape scale featuring a 20 µm pitch and IN-TRAC customer selectable reference mark. It is accurate to ±5 µm/m and in lengths up to 10 metres. Two mounting options are available, both allow independent thermal expansion and tape scale convenience. RTLC20 can be used with the revolutionary FASTRACK™ scale carrier system. This system allows a track to be laid quickly and easily with no need for fixing holes. A sacrificial spacer is removed and the tape scale is then fed into the track. RTLC20-S is laid onto the substrate with self-adhesive backing tape. The self-adhesive is formulated in such a way that it allows for independent scale expansion to that of the substrate. To complete the installation, both types of scale are clamped at one point to provide a datum position.
