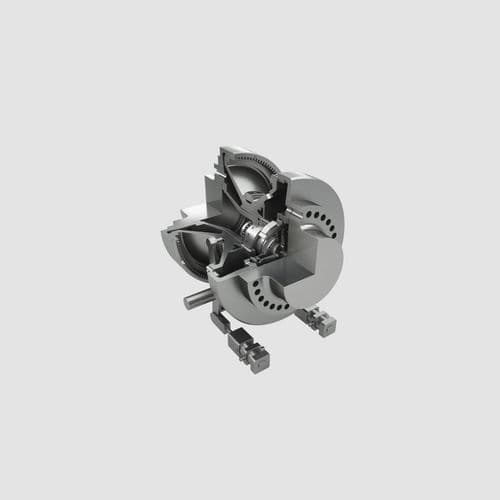

Flexible coupling HS

geartransmissionshaft

The HS synchronous clutch coupling is a hydraulically activated synchronous clutch coupling with straight toothing. It automatically engages at low speeds when the input shaft overtakes the output shaft. The coupling can be disengaged at any speed by reducing the output to under ten percent and sending the corresponding signal to the hydraulic unit. When engaged, the HS synchronous clutch coupling functions like a classic gear coupling. Due to the straight toothing, the full positive and negative torque can be transmitted without disengaging. Features Engages automatically at low synchronous speeds (< 500 rpm) Disengages upon command at any speed and < 10% output Transmission of the full positive and negative torque Power range up to 350 MW Compensation of angular errors as well as radial and axial movements Wear-free No additional flexible couplings required
