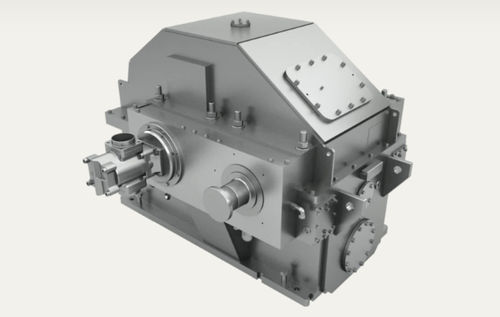

Helical gear gearbox TA..XI

spursingle-stagehigh-speed

API 613 spur gearboxes adapted and technically enhanced to meet the highest requirements; instruments and documentation suitable for specifications in the field of oil and gas engineering. The turbo gearbox of the TA..XI type is based on a single-stage gearbox concept for high-speed applications with variable center distances and housing widths, which are optimized precisely according to the respective applications. These gearboxes are primarily used in the oil and gas industry as well as in the field of energy production. This range holds the world record as the most powerful gearbox in the turbo gearbox market with an output of 140 MW. They are designed according to API, AGMA, ISO, and DIN and set the standard for turbo gearbox technology in terms of quality, efficiency, and availability. Features Maximum flexibility and adaptability to specifications / customer preferences Very short shaft overhangs for excellent rotordynamic vibration characteristics. Best possible efficiency that can be achieved by conventional means Optimized gear tooth geometry in terms of efficiency, noise, and vibration excitation Individually calculated, optimized bearing geometries for every application scenario Flexible housing concept for transmitting the highest power requirements Basis for etaX gearbox concept for reduced power losses Approved as per the DNV, GL, and LR classifications Maintenance-friendly due to instruments on lower section of housing
