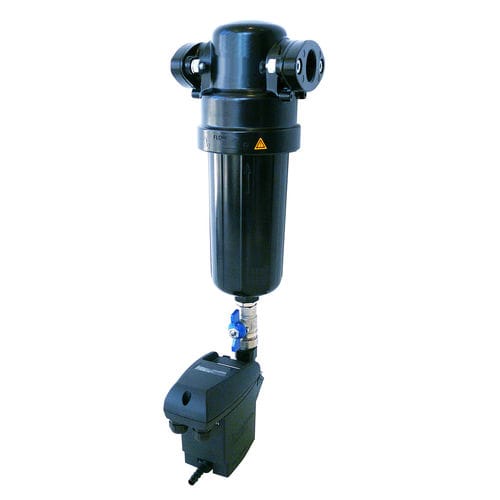

Cyclone separator RF-C series

condensategasfor air compressors

The compact cyclone separators RF-C are the economical choice for easy and reliable separation of larger quantities of condensate and coarse dirt particles. The innovative rotary motion (cyclone-like) of the compressed air generated by the cyclone separator releases solid and liquid components from the air with an efficiency of 99% and directs them via the inner wall of the chamber to the condensate collection container. Here, the dirt particles and the condensate are separated fully automatically via the level-controlled condensate drain. The robust aluminum housing including dip coating ensures a long service life and protects against corrosion. The flow-optimized design of the housing ensures very low pressure loss and economical compressed air treatment. The bayonet lock simplifies filter element replacement. Advantages High condensate separation at 99% efficiency due to innovative swirl generator Energy cost savings due to the flow-optimized design and the associated low pressure losses Easy to maintain due to bayonet lock and fully automatic steam trap Durable and corrosion-resistant due to sturdy aluminum housing and dip coating Easy installation – direct installation in the compressed air line behind the compressor
