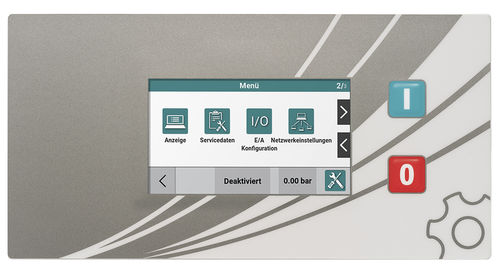

Digital pressure controller RENNERtronic Touch

Standard equipment For all compressors with variable speed control Starting with RS 75 in different versions RS-PRO 2-30.0 – 55.0 D (with direct drive) Optionally available for RENNER screw compressors from 2.2 – 55.0 kW Smartphone-like operation: Intuitively operable touchscreen on state-of-the-art technology. Events history: The last 50 messages are displayed including date and time. Pressure and temperature diagram: Extensive statistics on pressure and ­temperature diagrams with hourly scaling. Timer with six channels: This can be used to switch the four pressure bands, four potential-free relay contacts or the compressor. Replacing the control: RENNERtronic Touch (4,3“ touchscreen) and ­RENNERtronic Plus Touch (7“ touchscreen) are easily interchangeable. USB stick: Updates can be easily uploaded using a USB stick. Service indicator: Maintenance message will be shown when the set operating hour intervals is reached or at the latest after one year. Different code levels: Parameter access is restricted depending on the code level and the compressor is thus protected against unauthorised access. Flexible inputs and outputs: Freely assignable and ­inscribable ­digital inputs as well as four potential-free outputs. Control of frequency converters: The direct connection via RS485 bus interface eliminates the need for a separate converter display. Exchange of information in plain text. Display of compressor utilisation: Recording of operating and load hours as well as the percentage load for compressors with variable speed control.
