Electronic control unit RENNERconnect

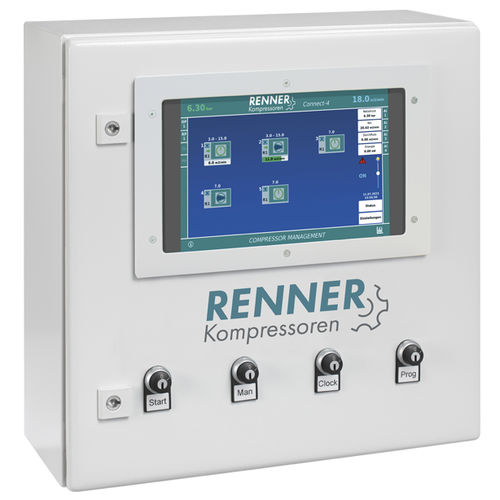

RENNERcontrol Touch is a base load change over in a wall mounting box with web visualization and touchscreen. It is available in different versions. Features Web server with base load change over and 7“ touchscreen. Visualization and monitoring of compressors via network and at site. BLCO for up to 4 compressors. Visualization and monitoring via network and display of the data in a web browser. Advantages Easy to retrofit. Visualization of compressors. Enhanced fault and maintenance management. Analysis of dew point and flow sensors. Digital inputs / outputs can be expanded via additional module. Features and functions A ball valve can be controlled by a timer and the net pressure or manually. The signal pillar indicates operational status, maintenance, warnings and faults. The room ventilation can be controlled depending on the room temperature. Fault messages from all add-ons such as dryers, filters, condensate drains etc. can be recorded and forwarded as potential-free contacts via optional fieldbuses and e-mail. Automatic e-mail dispatch to multiple e-mail addresses in case of errors, maintenance and warnings.
