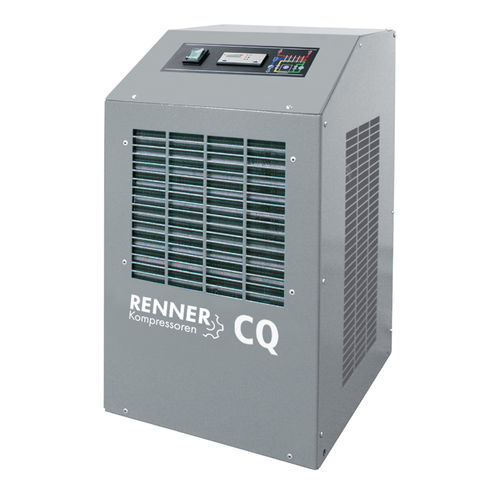

Refrigerated compressed air dryer RKT-CQ AB series compact
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- compact
- Capacity
Max.: 14.17 m³/min
(500.41 ft³/min)Min.: 0.33 m³/min
(11.65 ft³/min)- Working pressure
Max.: 16 bar
(232.06 psi)Min.: 2 bar
(29.01 psi)- Motor power
Max.: 1.38 kW
(1.88 hp)Min.: 0.16 kW
(0.22 hp)- Operating temperature
Max.: 55 °C
(131 °F)Min.: 30 °C
(86 °F)- Ambient temperature
25 °C, 30 °C, 35 °C, 40 °C, 45 °C
(77 °F, 86 °F, 95 °F, 104 °F, 113 °F)- Weight
Max.: 155 kg
(341.7 lb)Min.: 24 kg
(52.9 lb)- Dew point
3 °C, 5 °C, 7 °C, 10 °C
(37.4 °F, 41 °F, 44.6 °F, 50 °F)
Description
The RKT-CQ refrigeration dryers are designed as stand-alone units, equipped with a specially developed microcontroller for the electronic control of the condensate-solenoid-valve, fan and pressure dew point display. An air-to-air heat exchanger together with the refrigerant-to-air heat exchanger ensures energy-efficient and effective drying of the compressed air. Condensate is discharged fully automated via a time-controlled or level-controlled steam trap. The units are operated with 230 Volt AC and delivered ready for connection and operation.
Advantages
Low space requirement due to compact size
Corrosion-resistant and lightweight due to aluminum heat exchangers
Effective drying due to two integrated heat exchanger systems
Energy efficient due to pre-cooling or drying in air-to-air heat exchanger
Ozone-friendly refrigerant
Highly controllable thanks to specially developed electronic microcontroller
Fully automatic steam trap with time-controlled or level-controlled steam trap
