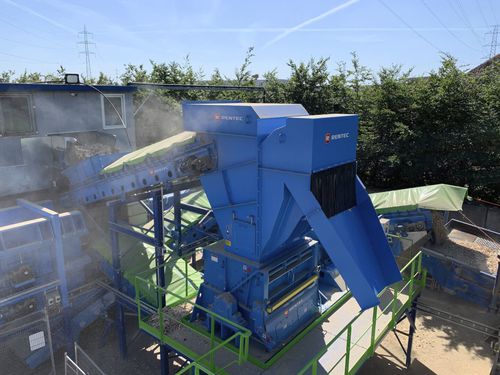

Secondary waste crusher-shredder Woodhog

for industrial applications

This super-duty, high-speed grinder processes post-consumer wood waste to the specifications of the chipboard industry and the green energy suppliers. The shredder is equipped with a 250 - 315 kW electric motor with frequency control. This offers following advantages : total control of power surges during start-up adjustable rotor speed to adapt the size of the output material to the customer's specifications controlled reduction of the rotor speed to a standstill within 2 minutes after switch-off The rotor is suited for 100 mm thick, 25 kg heavy, both swinging and fixed hammers. These are equipped with dismountable and weldable hammer tips. The calibration basket consists of individual welded screens that can be exchanged according to wear or desired final product size. A ballistic ejector is mounted in the feed hopper which allows solid metal jamming material to leave the grinding chamber immediately in order to avoid further wear and damage.
