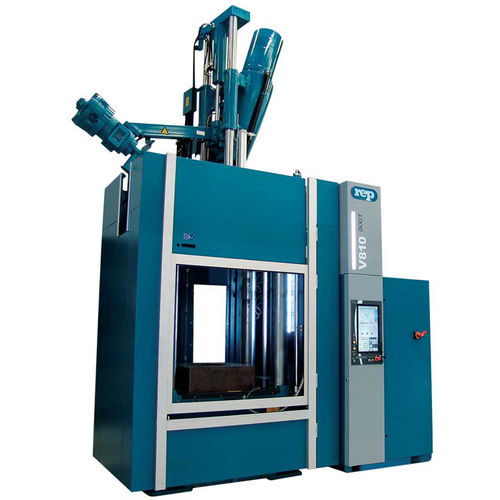

Vertical injection press V810-Y2000

hydraulicelectricfor rubber

The V810 Y2000 is a G10 press belonging to the Performance Range. It is available as standard with a Y2000 or Y5000/L8500 or Y11500 injection unit. Main advantages of all G10 Extended presses Precise temperature and injection process monitoring Most competitive energy yield per molded part Extended connectivity (4.0 facilities) Long lasting machine building Large configuration option list Equipped with the patented injection system which made REP's success, the V810 offers a wide range of injection volumes/pressures. The accurate centring of the injection unit on the mold stands for unequalled tightness and shot size precision, thus warranting the quality of the molded parts. Technical features Dimensions of heater plates: 1000 x 1000 mm Injection capacity: 2000 cm3 Injection pressure: 1500 bar Width x depth 3659 x 1840 mm Height 4884 mm
