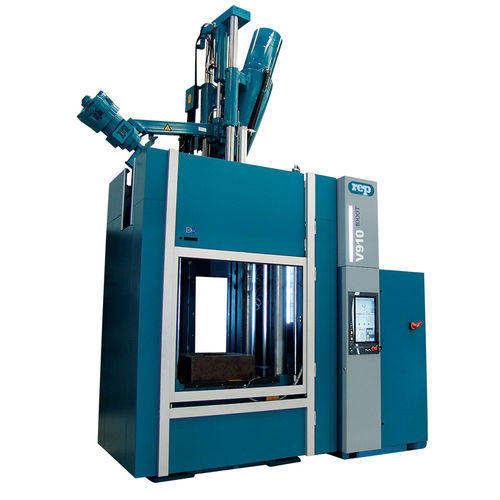

Vertical injection press V910-Y5000/L5000

electricfor rubber

The V910 Y5000/L5000 is a giant G10 press belonging to the Performance Range. It may be equipped with a L-shaped or Y-shaped injection unit of 5000 cc. It is also available as standard with a Y8500/L8500 or Y11500 injection unit. Main advantages of all G10 Extended presses Precise temperature and injection process monitoring Most competitive energy yield per molded part Extended connectivity (4.0 facilities) Long lasting machine building Large configuration option list Equipped with the patented injection system which made REP's success, the V910 Extended Y5000/L5000 offers a wide range of injection volumes/pressures. Technical features Dimensions of heater plates: 1200 x 1200 mm Injection capacity: 5000 cm3 Injection pressure: 1500 bar Width x depth : 4095 x 2350 mm Height 5700 mm
