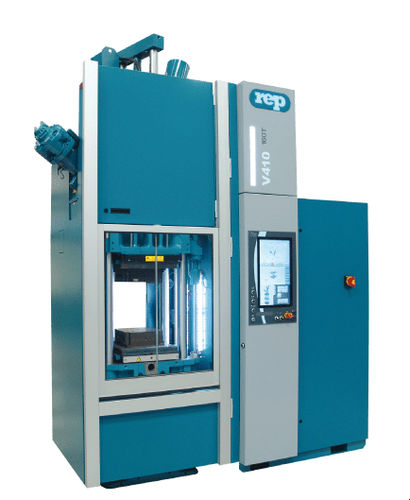

Vertical injection press V410-Y1000

electricfor rubber

The V410 Y1000 is a G10 press belonging to the Performance Range. It is available as standard with a Y400 or Y1000 injection unit. With a clamping force of 160 tons, it's a mid-range machine which is suitable for many different productions! Main advantages of all G10 Extended presses Precise temperature and injection process monitoring Most competitive energy yield per molded part Extended connectivity (4.0 facilities) Long lasting machine building Large configuration option list The accurate centring of the injection unit on the mold stands for unequalled tightness and shot size precision, thus warranting the quality of the molded parts. Technical features Dimensions of heater plates: :430 x 510 mm Injection capacity: 1000 cm3 Injection pressure: 1500 bar Width x depth: 2420 x 1200 mm Max. height: 3640 mm
