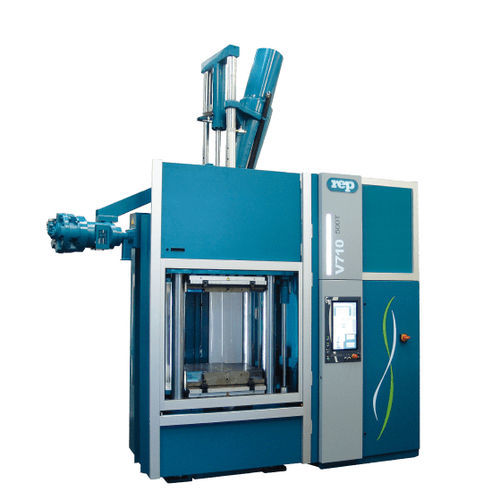

Vertical injection press V710-Y8500/L8500

electricfor rubber

The V710 L8500 or Y8500 is a G10 press belonging to the Performance Range. It may be equipped with a L-shaped or Y-shaped injection unit of 8500 cc. It is available as standard with a Y2000 or Y5000/L5000 or Y11500 injection unit. Main advantages of all G10 Extended presses Precise temperature and injection process monitoring Most competitive energy yield per molded part Extended connectivity (4.0 facilities) Long lasting machine building Large configuration option list Equipped with the patented injection system which made REP's success, the V710 offers a wide range of injection volumes/pressures. The accurate centring of the injection unit on the mold stands for unequalled tightness and shot size precision, thus warranting the quality of the molded parts. Technical features Dimensions of heater plates: 630 x 800 mm Injection capacity: 8500 cm3 Injection pressure: 1500 bar Width x depth 3031 x 1746 mm Height 5332 mm
