Vertical injection press V910-Y8500/L8500

electricfor rubber

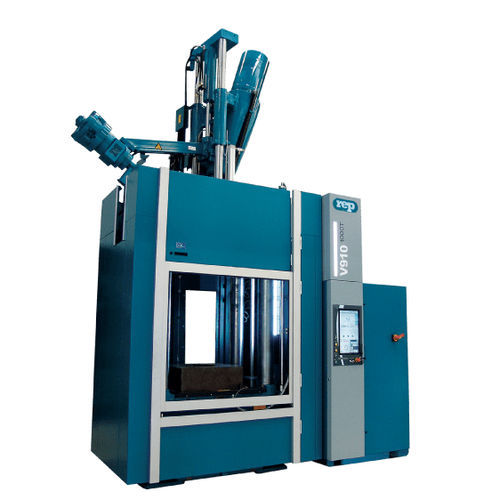

The V910 Y8500/L8500 is a giant G10 press belonging to the Performance Range. It may be equipped with a L-shaped or Y-shaped injection unit of 8500 cc. Main advantages of all G10 Extended presses Precise temperature and injection process monitoring Most competitive energy yield per molded part Extended connectivity (4.0 facilities) Long lasting machine building Large configuration option list Equipped with the patented injection system which made REP's success, the V910 Extended Y8500/L8500 offers a wide range of injection volumes/pressures. Technical features Dimensions of heater plates : 1200 x 1200 mm Injection capacity: 8500 cm3 Injection pressure: 1500 bar Width x depth : 4095 x 2350 mm Height 5840 mm
